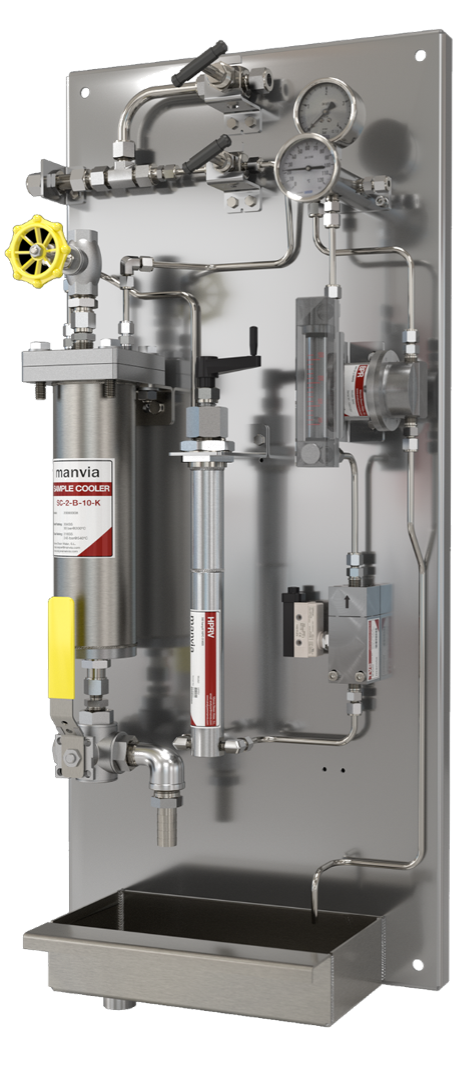

COMPACT CONDITIONING PANEL (CP)
The Manvia Compact Conditioning Panel is a critical safeguard for high-pressure steam and water analysis. Engineered for extreme environments, it systematically reduces volatile process temperatures and pressures to precise, stable levels required for sensitive analytical sensors. By integrating primary and secondary cooling with automated thermal shut-off protection, the CP ensures maximum equipment uptime, prevents costly sensor damage, and maintains the highest standards of personnel safety in Power and Chemical processing plants.
Technical Requirements:
- Temp Control: Stable 25°C Output
- Pressure Control: 1-3 bar Regulation
- Flow Stability: 50-500 ml/min
- Automatic High-Temp Shut-off Protection
| Parameter | Standard Range | High-Pressure Option |
|---|---|---|
| Max Inlet Pressure | 250 bar | 400+ bar |
| Max Inlet Temp | 450°C | 560°C |
| Regulated Output | 1-3 bar | 1-3 bar |
| Sample Flow | 50-600 ml/min | 50-1000 ml/min |
| Wetted Materials | SS 316L / Inconel / Hastelloy | |

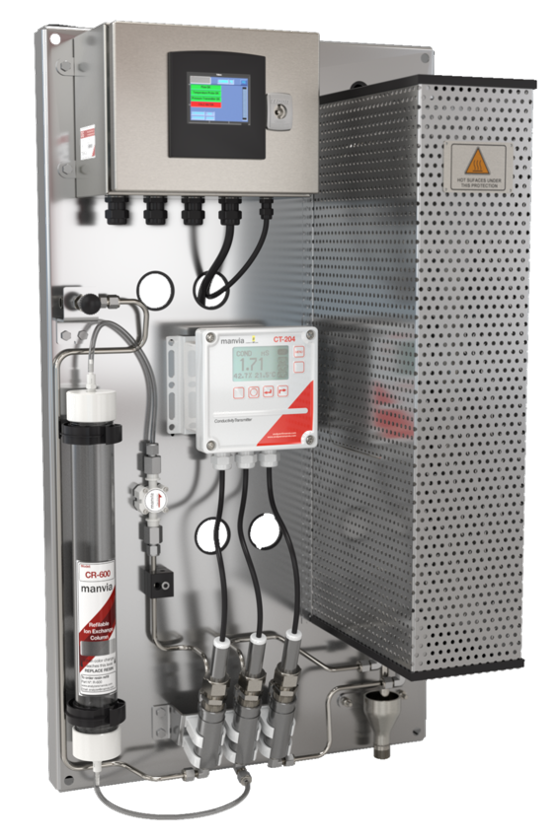

DEGASSER CATION CONDUCTIVITY
The Manvia Atmospheric Degasser is specifically designed to eliminate interference from dissolved gases, such as CO2, in steam-water cycle samples. By stripping away these non-condensable gases at boiling temperatures, the unit allows for the isolated measurement of Cation Conductivity. This high-precision analysis is vital for detecting early-stage salt contamination and ensuring the integrity of high-pressure boiler systems and turbine components.
Technical Requirements:
- Efficiency: > 90% CO2 Removal
- Heater Capacity: 1.5 kW
- Power: 230 VAC, 50/60 Hz
- Flow Range: 100 - 250 ml/min
| Parameter | Specification | Material |
|---|---|---|
| Inlet Temperature | Max 50°C | SS 316L |
| Heating Element | AISI-321 / Incoloy | Incoloy 800 |
| CO2 stripping method | Atmospheric / Boiling | N/A |
| Connection size | 1/4" or 6mm OD | Stainless Steel |

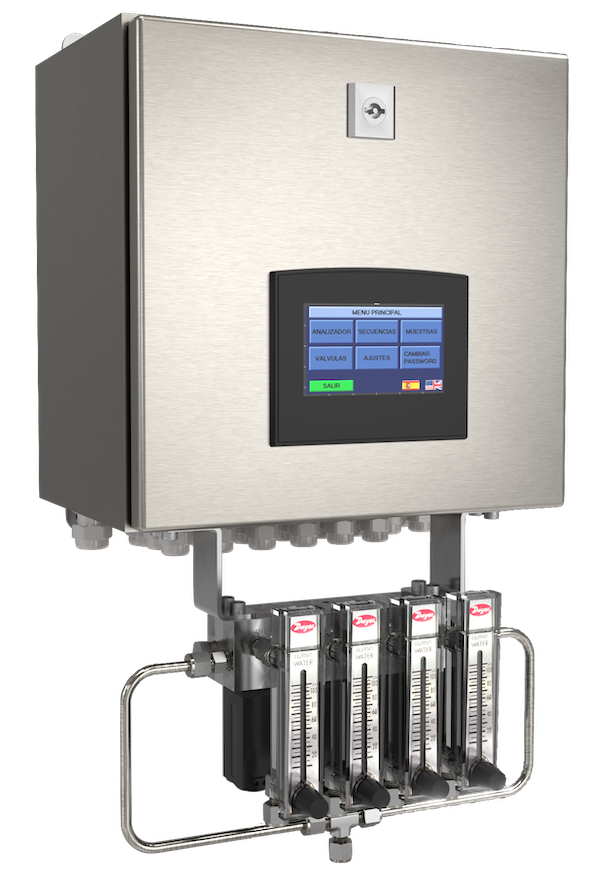

MULTI-STREAMS ANALYZER SEQUENCER
The Manvia Multi-Stream Sequencer is an advanced micro-processor-based system designed to multiplex several sample streams into a single analyzer. This optimization allows for significant cost savings in instrumentation while maintaining rigorous monitoring across multiple process points. With programmable timing and integrated bypass flow control, it ensures that each sample stream is fresh and representative at the moment of analysis, preventing cross-contamination and lag time.
Technical Requirements:
- Input Streams: Up to 8 Streams per Unit
- Power: 110/220 VAC, 50/60 Hz
- Control: PLC/Modbus Communication Ready
- Sample Purge: Adjustable Auto-Purge Timing
| Parameter | Standard Specification | Material / Interface |
|---|---|---|
| Number of Streams | 2 to 8 Streams | SS 316L Valves |
| Operating Pressure | Max 10 bar | Stainless Steel |
| Sample Flow rate | 100 - 1000 ml/min | Bypass integrated |
| Digital Output | 4-20mA / Relay / RS485 | Modbus RTU |
| Enclosure Rating | IP65 / NEMA 4X Optional | |

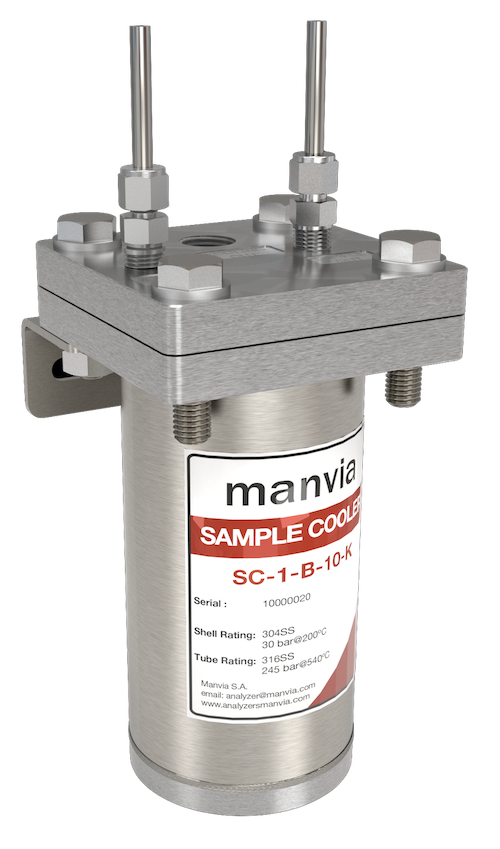

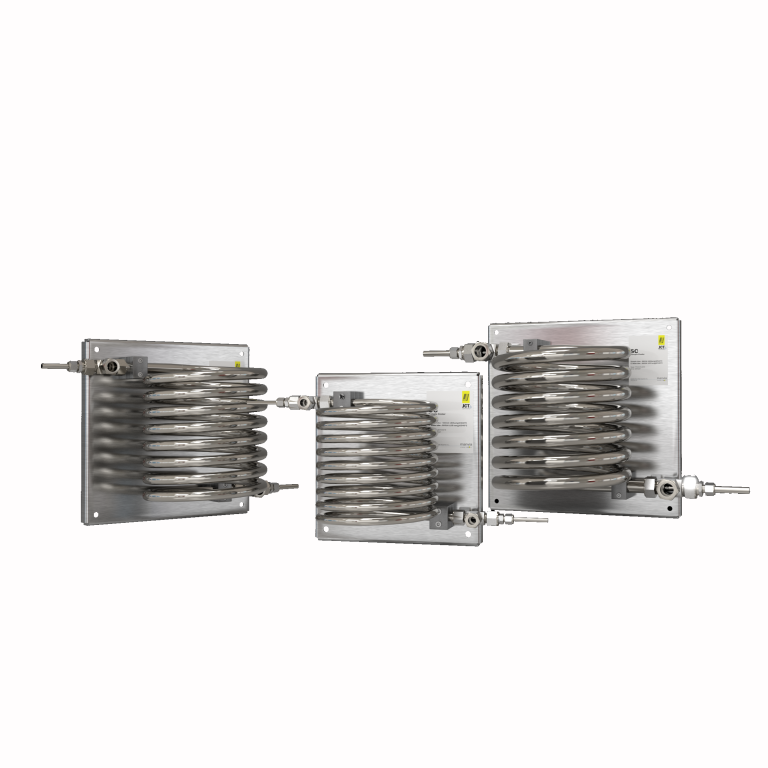

SAMPLE COOLER SC-1 / SC-2 / SC-3 / SC-4
The Manvia SC Series Sample Coolers are high-efficiency, compact heat exchangers designed specifically for the cooling of high-temperature steam and water samples. Utilizing a helical coil-in-shell design, these coolers provide a large heat transfer area within a minimal footprint. Whether for high-pressure saturated steam or boiler blowdown, the SC series ensures that samples are cooled to the precise temperature required for safe and accurate laboratory or online analysis, preventing flashing and protecting downstream equipment.
Technical Requirements:
- Cooling Medium: Service Water / Chilled Water
- Design: Helical Coil-in-Shell (Counter-flow)
- Compliance: Designed to ASME VIII Div. 1 standards
- Maintenance: Fully drainable shell and coil
| Parameter | SC-1 / SC-2 (Standard) | SC-3 / SC-4 (High Cap) |
|---|---|---|
| Max Coil Pressure | 250 bar | 400 bar |
| Max Coil Temp | 450°C | 560°C |
| Coil Material | SS 316L | Inconel 625 / Monel |
| Shell Material | SS 304 / 316L | SS 316L |
| Connections | 1/4", 3/8", or 1/2" OD Compression | |
TUBE IN TUBE HEAT EXCHANGER (TIT)
The Manvia Tube in Tube (TIT) heat exchanger is specifically engineered for secondary cooling applications where precise temperature control is paramount. This counter-current flow design consists of two concentric tubes, providing a highly efficient heat transfer path for high-viscosity or high-purity samples. It is particularly effective for cooling samples to exactly 25°C before they reach the analytical sensors, ensuring stable calibration and eliminating temperature-induced measurement drift in high-performance SWAS systems.
Technical Requirements:
- Design: Concentric Double-Tube (Counter-flow)
- Application: High-accuracy secondary cooling
- Cleaning: Fully inspectable and easy to flush
- Efficiency: Optimized for low flow rates (50-200 ml/min)
| Parameter | Standard Specification | Material Details |
|---|---|---|
| Max Operating Pressure | 100 bar | Inner Tube: SS 316L |
| Max Operating Temp | 150°C (Inlet) | Outer Tube: SS 304/316L |
| Heat Transfer Area | 0.05 - 0.15 m² | Seamless tubing |
| Cooling Water Flow | 2 - 5 L/min | Standard tap water |
| Mounting | Vertical or Horizontal (Modular) | |

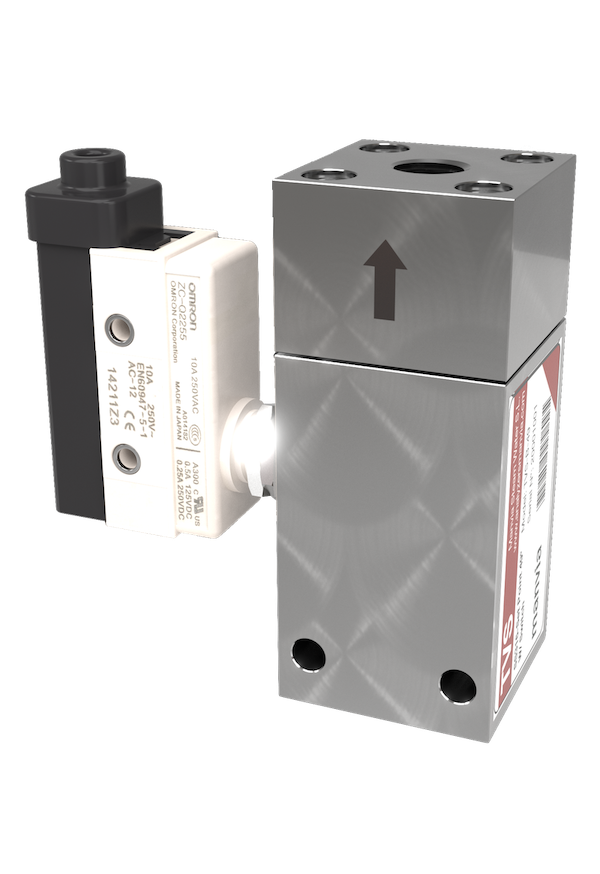

THERMAL SHUT-OFF VALVE (TSV)
The Manvia Thermal Shut-off Valve (TSV) is an essential mechanical safety device designed to protect online analyzers and personnel from high-temperature excursions. In the event of a cooling water failure or a primary cooler malfunction, the TSV automatically trips and shuts off the sample flow when the temperature exceeds a pre-set limit (typically 50°C). Unlike electronic solenoids, this valve is completely mechanical and self-actuated, ensuring fail-safe protection even during total power loss at the plant.
Technical Requirements:
- Actuation: Fully Mechanical (Non-electric)
- Reset: Manual reset required after trip for safety
- Response: Rapid shut-off within seconds of temperature rise
- Reliability: Maintenance-free thermostatic element
| Parameter | Standard Specification | Safety Rating |
|---|---|---|
| Shut-off Temp | 45°C - 55°C (Adjustable) | Fail-Safe Close |
| Max Inlet Temp | Up to 550°C | High-Temp Rated |
| Max Inlet Pressure | 250 bar | SS 316L Body |
| Connections | 1/4" OD Compression | Leak-proof Design |
| Power Source | None (Self-contained Thermal Actuator) | |

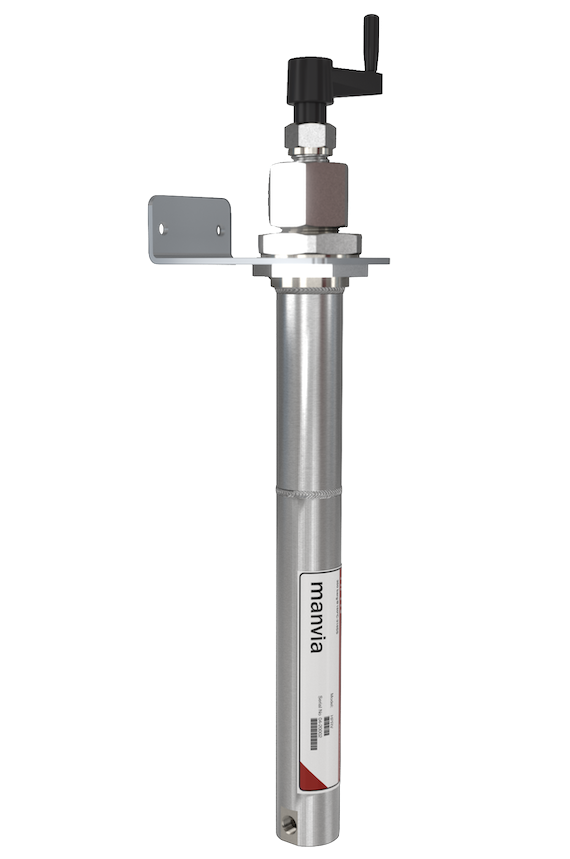

HIGH PRESSURE REDUCER VALVE (HPRV)
The Manvia High Pressure Reducer Valve (HPRV) is a precision-engineered component designed to handle the most demanding pressure reduction tasks in steam and water analysis systems. Unlike standard regulators, the HPRV utilizes a sophisticated rod-in-tube or multi-stage orifice design to provide stable, adjustable, and noise-free pressure reduction from supercritical levels down to safe operating ranges. It is built to withstand high velocity and potential flashing, ensuring long-term reliability and constant flow rates for downstream analytical instrumentation.
Technical Requirements:
- Design: Multi-stage / Rod-in-Tube Pressure Reduction
- Stability: Constant outlet pressure regardless of inlet fluctuations
- Safety: Integrated blow-out proof design
- Durability: Hardened trim for erosion resistance
| Parameter | Standard Specification | Material Details |
|---|---|---|
| Max Inlet Pressure | Up to 450 bar | Body: SS 316L |
| Max Inlet Temp | Up to 560°C | Trim: Stellite / 17-4 PH |
| Pressure Reduction | Manual / Rod Adjustment | High-precision control |
| Connections | 1/4" or 3/8" OD Compression | NPT / Socket Weld Opt. |
| Flow Coefficient (Cv) | Optimized for 50 - 1500 ml/min Sampling | |

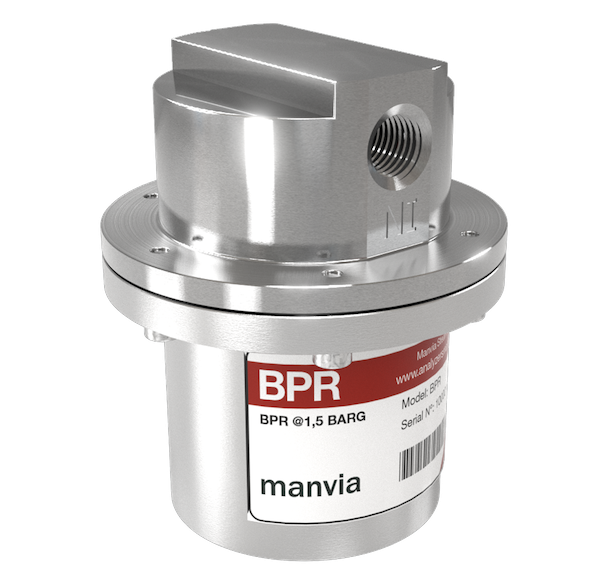

BACK PRESSURE RELIEF VALVE (BPRV)
The Manvia Back Pressure Relief Valve is a critical component for maintaining constant upstream pressure within the sampling line. By providing a stable "back pressure," it ensures that flow rates to sensitive online analyzers remain consistent regardless of fluctuations in the process or cooling water demands. Designed with high-sensitivity diaphragms, the BPRV also acts as a safety relief, venting excess sample flow to the drain if pressure exceeds the set limit, thereby protecting delicate sensors from over-pressurization.
Technical Requirements:
- Function: Dual-purpose Back Pressure & Relief Valve
- Sensitivity: High-accuracy diaphragm for low-pressure control
- Stability: Prevents flow surging in analytical loops
- Design: Easy-adjust knob with locking mechanism
| Parameter | Standard Specification | Material Details |
|---|---|---|
| Pressure Range | 0.5 - 10 bar (Adjustable) | Body: SS 316L |
| Max Temperature | Up to 100°C | Diaphragm: PTFE / Viton |
| Sample Flow | 50 - 1500 ml/min | High-flow bypass capability |
| Connections | 1/4" NPT or Compression | Panel mountable |
| Repeatability | ± 0.1 bar for stable analyzer input | |

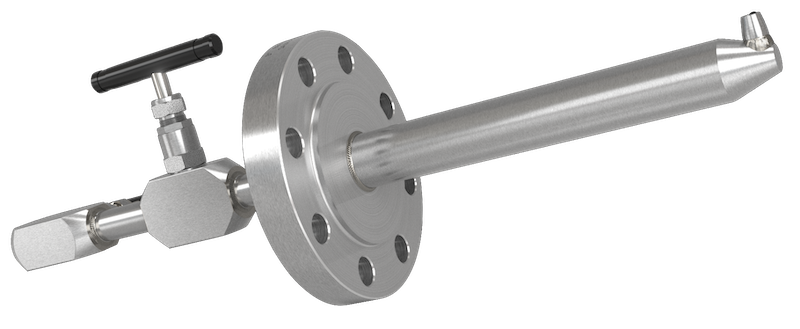

ISOKINETIC SAMPLING PROBE
The Manvia Isokinetic Sampling Probe is the critical first point of contact in a Steam and Water Analysis System (SWAS). Specifically designed to meet ASTM D1066 and ASME PTC 19.11 standards, this probe ensures that the steam sample extracted from the main header is truly representative of the bulk flow. By maintaining isokinetic conditions—where the velocity of the steam entering the nozzle matches the velocity of the steam in the pipe—it prevents the common issue of phase separation, ensuring accurate measurement of impurities and chemical concentrations.
Technical Requirements:
- Standards: Compliance with ASTM D1066 / ASME PTC 19.11
- Design: Multi-port or Single-port nozzle options
- Application: High-pressure superheated or saturated steam
- Calculation: Custom-engineered based on pipe velocity and flow
| Parameter | Standard Specification | Material Details |
|---|---|---|
| Pipe Sizes | 2" to 24" Main Header | Custom lengths avail. |
| Max Steam Temp | Up to 600°C | F91 / SS 316L / Inconel |
| Max Steam Pressure | Up to 320 bar | High-pressure rated |
| Mounting Type | Socket Weld / Flanged | Full penetration welds |
| Sample Nozzle | Sharp-edged Isokinetic design for phase accuracy | |

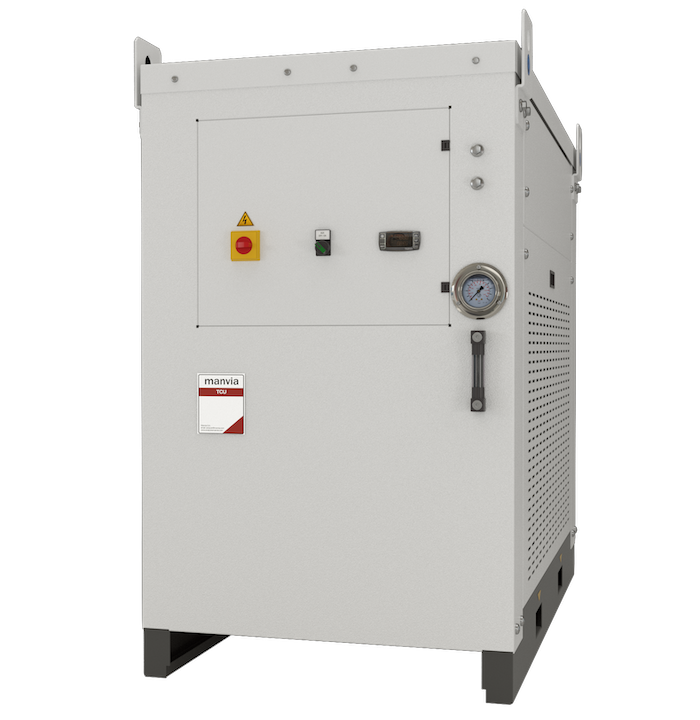

TCU COOLING WATER TEMPERATURE CONTROL UNIT
The Manvia Temperature Control Unit (TCU) is a sophisticated thermal management system designed to regulate the temperature of the cooling water itself before it enters the sample coolers. By maintaining a constant and chilled cooling water supply, the TCU ensures that the final sample temperature remains strictly at 25°C, even in tropical climates or environments with high ambient fluctuations. This "primary regulation" layer is essential for high-precision analytical systems where even a 1°C deviation can affect conductivity or pH accuracy.
Technical Requirements:
- Function: Precise secondary cooling water regulation
- Control: Integrated PID controller with motorized valve
- Reliability: Ensures 25°C stability for analytical sensors
- Compatibility: Can support multiple conditioning lines
| Parameter | Standard Specification | Control Details |
|---|---|---|
| Inlet Water Temp | Max 45°C | Standard Cooling Water |
| Set-Point Accuracy | ± 0.5°C | High-precision PT100 |
| Flow Capacity | 10 - 50 L/min | Scalable design |
| Power Supply | 230 VAC, 50/60 Hz | IP54 Control Box |
| Heat Exchanger | Plate Type or Tube-in-Tube (Application specific) | |
